電池?cái)D壓試驗臺 Battery Extrusion Testing chamber 一.相關標準測試要求 Related standard test requirements 1.IEC62133-2012 2.UL1642 3.UN38.3 4.GB/T31241-2014

7×24在線咨詢

專業客服在線解答，為您解決遇到的問題！

立即咨詢

產品中心

PRODUCT CATEGORY

相關產品

RELATED PRODUCTS

詳細介紹

一、技術參數

Technical parameters

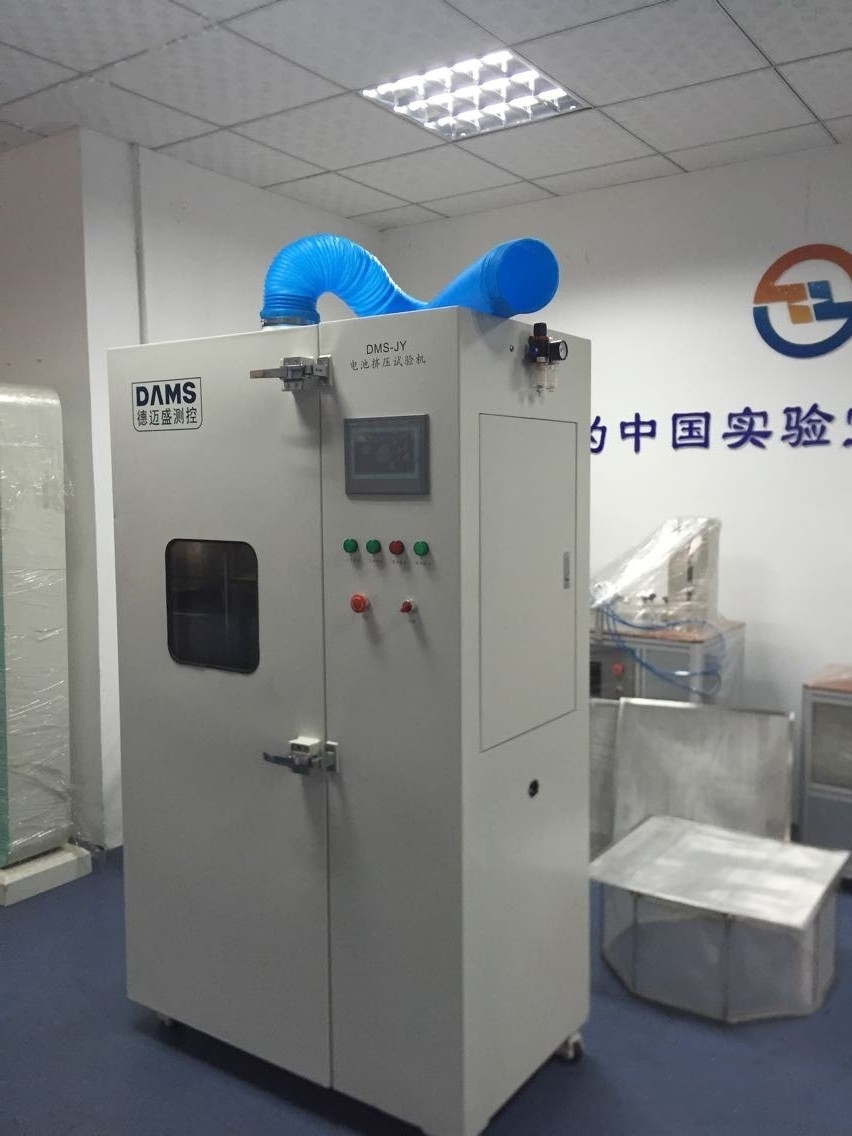

西門子觸摸式電池?cái)D壓試驗機（GB31241-2014，UL1642適用）

Touch Battery extrusion Tester ( Applied to GB31241-2014, UL1642)

型號 Model	DMS-JY
最大壓力Max. Pressure	1KN-20KN（可調，可根據客戶要求定制）(Can be customized according to requirements)
活塞直徑Piston diameter	32mm
驅動方式Driving method	液壓Hydraulic pressure
單位轉換Unit conversion	Kg/N/Lb
擠壓行程 Crush range	0~300MM
擠壓精度Extrusion accuracy	±1%
擠壓保持時間 Extrusion remaining time	0~99小時99分鐘99秒
控制方式 Controlling method	PLC觸摸屏控制系統(7寸觸摸屏)+遠程遙控控制PLC touch screen control system (7-inch touch screen) + remote control
測試空間 Testing space size	W500xD300xH300 mm
外形尺寸Dimension	W940xD780xH2020 mm
可視窗口Viewing window	390 X 360mm(20mm厚鋼化防爆玻璃+防爆不銹鋼網)
電源Power supply	AC 380V 50HZ
功率Power	2.0KW
USB接口 USB interface	帶USB接口，可將測試數據導出 With USB interface, the test data can be exported
輔助功能 Accessibility	防爆泄壓裝置、排煙裝置、防爆鏈Explosion-proof pressure relief device, smoke exhaust device, explosion-proof chain
選購件 Options	視頻監控系統，溫度、電壓采集系統Video monitoring system, temperature, voltage acquisition system
